C1311A-R: Extreme S-Cam Bushing Kit (11-1/32″ S-Cam, 2-1/8″ Bore, Right-Hand)

C1311A-R: Extreme S-Cam Bushing Kit (11-1/32″ S-Cam, 2-1/8″ Bore, Right-Hand)

$133.99

  • 11-1/32″ S-Cam Length
  • Extreme Cam Tube Length: 8-3/8″
  •  2-1/8″ Spider Diameter
  • Right-Hand
  • 28 Spline
  • 1.5″ S-Cam Journal
  • For use with Trailers only
  • Bolt-On; no welding required
C1311A-R PRODUCT SPECIFICATIONS:
EVERY EXTREME CAM ALL-INCLUSIVE KIT CONTAINS:
  • 11-1/32" S-Cam Length: How to measure s-cam length
  •  2-1/8" Spider Diameter: How to measure spider diameter
  • Extreme Cam Tube Length: 8-3/8"
  • Right-Hand
  • 28 Spline
  • 1.5" S-Cam Journal
  • For use with Trailers only
  • Bolt-On; no welding required
  • S-Cam Cross References: E-11865, E-10900, E-11867
  • Bushing Cross References: E-11897

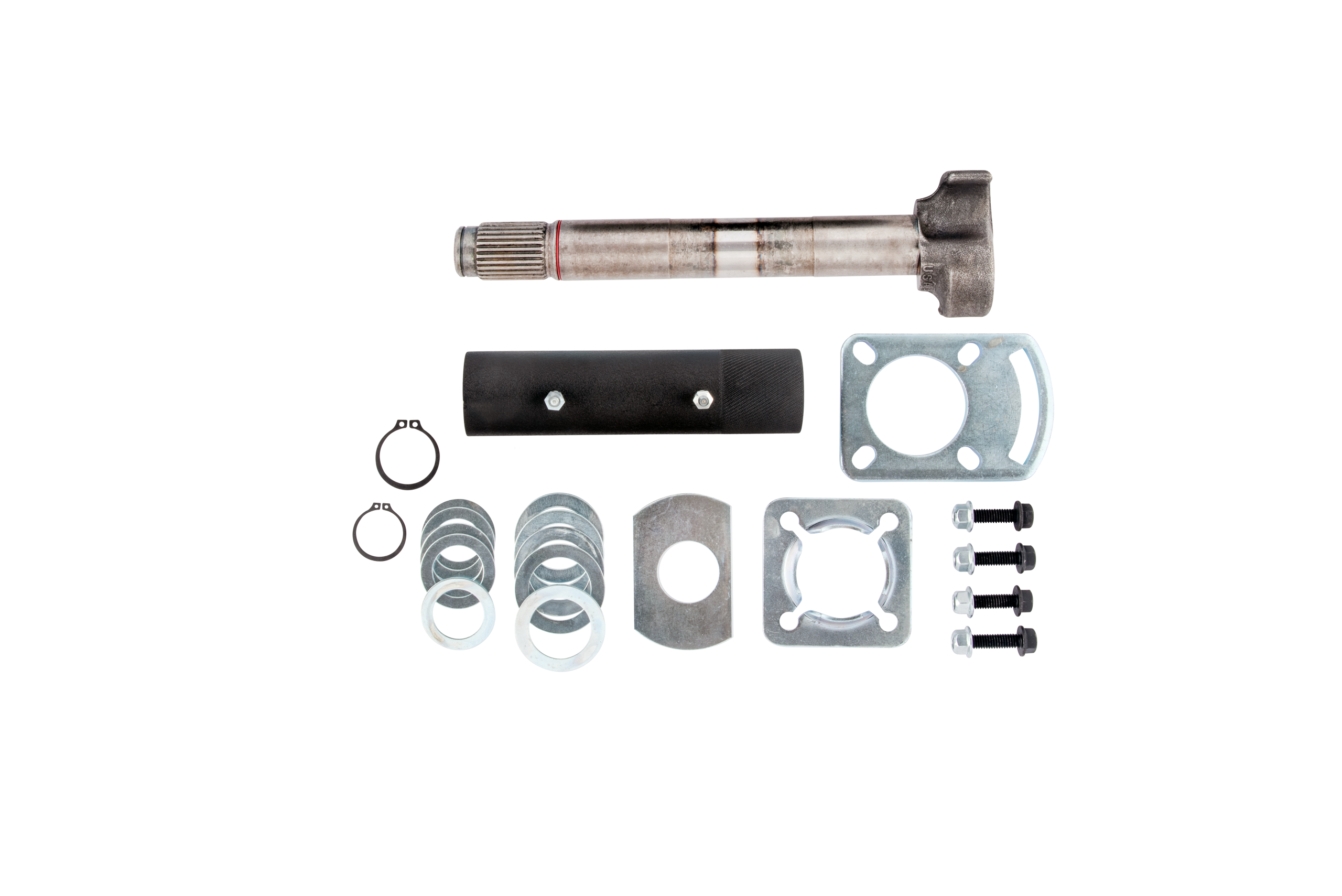

  • Extreme S-Cam
  • Extreme Enclosed Cam Tube & Cam Bushing
  • Mounting Bracket Kit
  • Washer/Spacer Kit
  • Product Installation Guide




Extreme Cam all-inclusive kits contain everything you need to convert any trailer to a fully enclosed cam tube system
Why Extreme Cams?

The Extreme Cam is specifically engineered to extend the life of your brakes. Our customers tell us they are getting up to five times the life out of their s-cams and cam bushings and are significantly increasing the life of their brakes and drums. Each all-inclusive kit contains everything that you need to convert any trailer to the Extreme Cam s-cam / bushing system. You'll receive an Extreme S-Cam, Extreme Cam enclosure tube & cam bushing, a mounting bracket kit, and washer/spacer kit. Ease of installation is key, so the Extreme Cam is a complete bolt-on solution with no welding required.

How are Extreme Cams Superior?

We manufacture Extreme Cam kits in our in-house production facility. It all starts with using American-made steel and precision manufacturing processes. We use a ISO 9000 inspired quality management system to ensure we are delivering bushings with the tightest tolerances in the industry. Our bushings are made with a proprietary combination of materials and production processes that we guarantee will outperform the competition. Our Extreme Cam tubes are built with .125" wall DOM steel tubing that is measurably stronger than the 16-gauge material used by our competitors. We also have aggressive procedures to fight corrosion from the start. First, we powder coat every Extreme Cam enclosure tube. Next, we use anti-corrosion oil infused bushings with 5 large grease channels to ensure your s-cam stays lubricated. Then we install our specially designed double lip seals to keep contaminants from infiltrating your cam tubes. Finally, we install a pressure relief valve that lets excess grease out without compromising the integrity of the seals.

The Difference is Clear

You will see the difference the first time you pick up an Extreme Manufacturing cam kit.

Weight 14 lbs
Dimensions 14 × 4.5 × 3 in
Warranty

Extreme Manufacturing provides an industry-leading 2 Year Manufacturer Warranty against product defects and failures.
